產品名稱: 臺式粒子計數器

型號系列:BT-620

品牌:metone

產地:美國

價格:**終成交價格需聯系客服

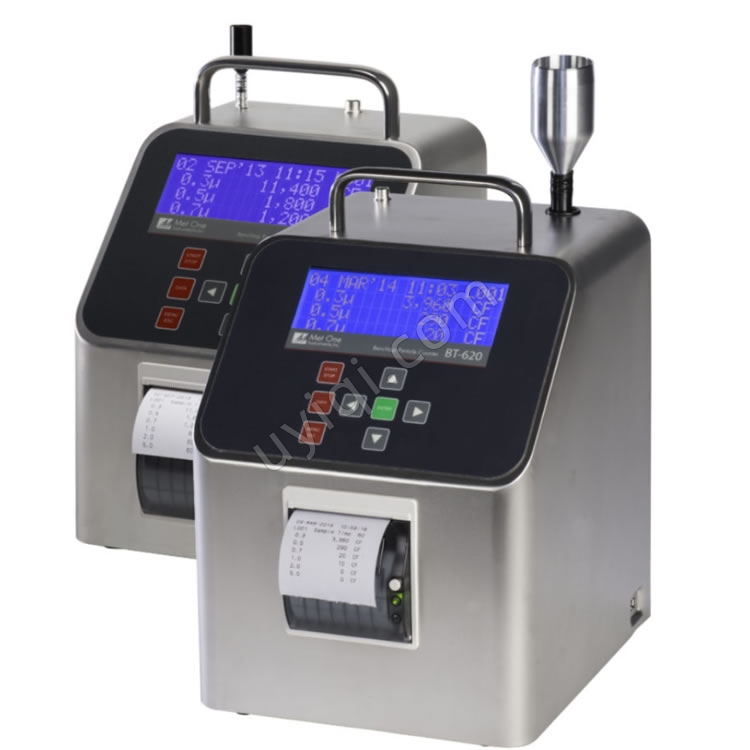

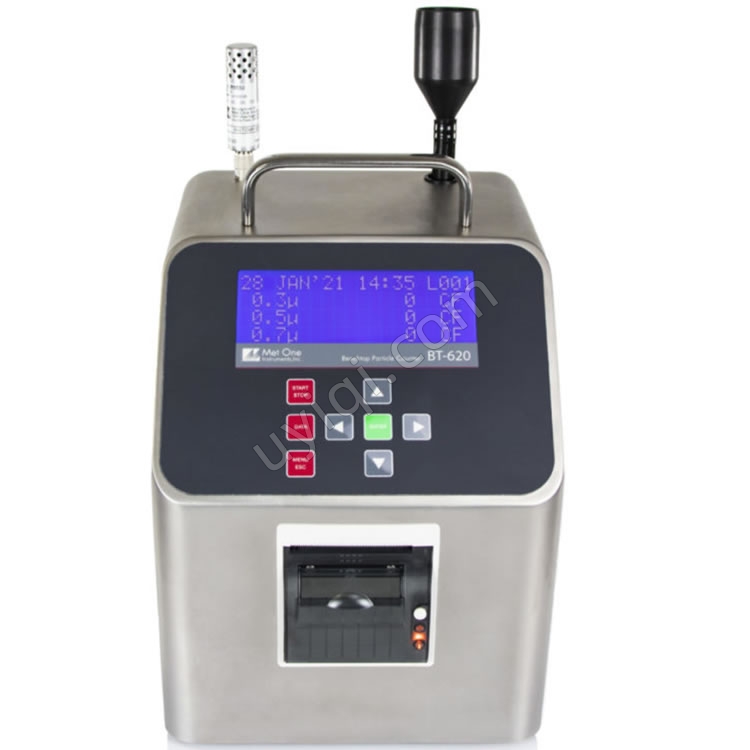

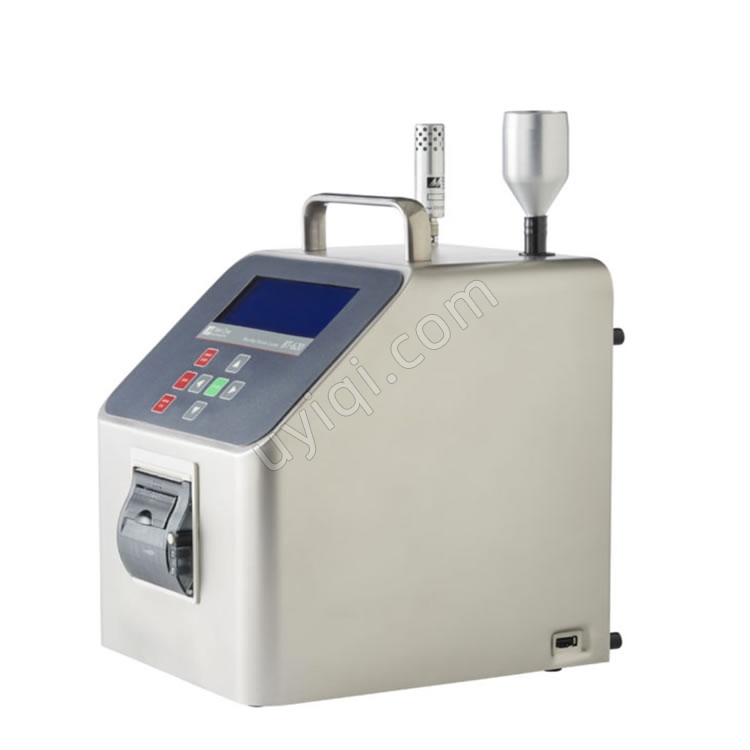

臺式粒子計數器 BT-620

BT-620 是一款緊湊型、電池供電的粒子計數器，具有六個可選尺寸通道、一個集成打印機，并安裝在便攜式不銹鋼外殼中。該設備的流量為 1.0 CFM (28.3 LPM)，并通過體積流量控制來保持以提高準確性。這款臺式粒子計數器具有易于閱讀的大顯示屏、聲音警報和內部打印機，可協同工作以驗證粒子水平。如果粒子計數超過用戶預設的限制，聲音警報將響起，屏幕顯示、樣品歷史記錄和打印輸出將指示警報事件?？梢栽O(shè)置兩個可編程計數報警限值。
BT-620 非常適合在潔凈室中使用，旨在輕松與現有的樓宇自動化系統、設施軟件、處理器集成，或可作為獨立單元使用。

臺式粒子計數器 BT-620方便潔凈室合規性

BT-620 粒子計數器便于遵守 21 CFR Part 11，設計有密碼功能，可防止未經授權更改用戶設置。該裝置還通過升級校準符合 ISO 14644-1 和 ISO 21501-4。

臺式粒子計數器 BT-620方便使用的

BT-620 提供直觀的導航和超友好的用戶界面。六個通道中的每一個都可以由操作員單獨設置，范圍為 0.3 到 10 微米，無需自定義校準。除了用戶可選擇的尺寸外，該儀器還具有用戶可調節的采樣時間、用戶可識別的位置 ID，并存儲 8,000 多個采樣事件。

可以使用 Met One 的 ParticleView 或 Comet 軟件或簡單的 ASCII 終端命令查看或打印樣本歷史事件并將其下載到計算機。實時監控可通過可選的軟件升級到 ParticleView RT。該裝置可輕松集成到 MODBUS 多點網絡和設施軟件中。數字（以太網、USB、RS-232、RS-485）和模擬輸出（0-5 VDC）均內置連接。BT-620 還包括一個記憶棒端口。

打印機提供兩種操作模式：打印樣本在每個樣本結束時打印樣本數據，包括警報、日期、時間和位置；調用數據打印從**個選定日期和時間到第二個選定日期和時間的所有樣本數據。

即插即用選項可以立即將環境溫度和相對濕度功能添加到顯示和記錄的數據中。

臺式粒子計數器 BT-620特征

• 與現有設施軟件輕松集成
• 內置數字和模擬連接
• 符合 21 CFR Part 11
• ISO21501-4 符合校準
• 內置打印機可確保數據完整性
• 體積流量控制可提高精度
• 可選計數單位 (TC, /L, CF, M3)
• 用戶友好的菜單驅動設置
• 用戶可調節采樣時間
• 用戶分配的位置 ID
• 超過 8000 個采樣事件的數據存儲
• 電池和交流供電
• 聲音警報

臺式粒子計數器 BT-620配件

提供：
操作手冊
USB 電纜
Comet 軟件
ParticleView 軟件
電池充電器
等動力學樣品探頭
零顆粒過濾器
打印紙 – 2 卷
NIST 校準證書

可選的：
相對濕度和溫度探頭 (P/N G3120)
流量計 (P/N 81755)
串行電纜 (P/N 550065)
ISO 21501-4 校準 (P/N 80849)
Particle View RT 軟件(P/N Particle View)
打印紙（部件號 750514）

臺式粒子計數器 BT-620應用：

質量保證計劃
潔凈室監控

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

Bench-Top Particle Counter BT-620
The BT-620 is a compact, battery-operated particle counter with six selectable size channels, an integrated printer, and housed in a portable stainless-steel case. The device’s flow rate is 1.0 CFM (28.3 LPM) and is maintained with volumetric flow control for improved accuracy. This benchtop particle counter has a large, easy-to-read display, audible alarms, and an internal printer that work together to verify particulate levels. If the particle count exceeds the user’s pre-set limit, the audible alarm will sound, and the screen display, sample history, and printout will indicate an alarm event. Two programmable count alarm limits may be set.

Ideal for use in cleanrooms, the BT-620 was designed to easily integrate with existing building automation systems, facility software, processors, or may be used as a standalone unit.

CONVENIENT FOR CLEANROOM COMPLIANCE
The BT-620 particle counter is convenient for compliance with 21 CFR Part 11, designed with a password feature to prevent unauthorized changes to the user settings. The unit is also compliant with ISO 14644-1, and ISO 21501-4 with an upgraded calibration.

USER-FRIENDLY
The BT-620 offers intuitive navigation with an ultra user-friendly interface. Each of the six channels may be individually set by the operator from 0.3 to 10 microns without requiring custom calibration. In addition to user-selectable sizes, the instrument features user-adjustable sample time, user-identifiable location IDs, and stores over 8,000 sample events.

Sample history events may be viewed or printed and downloaded to a computer using Met One’s ParticleView or Comet software, or simple ASCII terminal commands. Real-time monitoring is available with an optional software upgrade to ParticleView RT. The unit easily integrates into MODBUS multi-drop networks and facility software. Connectivity is built-in for both digital (Ethernet, USB, RS-232, RS-485) and analog output (0-5 VDC). The BT-620 also includes a memory stick port.

The Printer offers two modes of operation: Print Sample prints sample data at the end of each sample including alarm, date, time and location; Recall Data prints all sample data from first selected date and time to second selected date and time.

A plug-and-play option can immediately add ambient temperature and relative humidity capabilities to displayed and logged data.

FEATURES
• Easily Integrate with Existing Facility Software
• Built-In Digital & Analog Connectivity
• 21 CFR Part 11 Compliance
• ISO21501-4 Compliant with Calibration
• Built-in Printer for Data Integrity
• Volumetric Flow Control for Improved Accuracy
• Selectable Count Units (TC, /L, CF, M3)
• User-Friendly, Menu-Driven Setup
• User-Adjustable Sample Time
• User-Assigned Location ID
• Data Storage of Over 8000 Sample Events
• Battery & AC-Powered
• Audible Alarms

SUPPLIED:
Operation Manual
USB Cable
Comet Software
ParticleView Software
Battery Charger
Iso-kinetic Sample Probe
Zero Particulate Filter
Printer Paper – 2 Rolls
NIST Certificate of Calibration

OPTIONAL:
RH & Temperature Probe (P/N G3120)
Flow Meter (P/N 81755)
Serial Cable (P/N 550065)
ISO 21501-4 Calibration (P/N 80849)
Particle View RT Software (P/N Particle View)
Printer Paper (P/N 750514)

APPLICATIONS:
QA Programs
Cleanroom Monitoring

---
