產品名稱: 便攜式碳監測儀

型號系列:C12

品牌:metone

產地:美國

價格:**終成交價格需聯系客服














C-12 便攜式碳監測儀

細粒度的碳監測從未像現在這樣負擔得起，這為許多應用開辟了一系列以前在經濟上遙不可及的機會。

介紹 GROUNDBREAKING Met One Instruments, Inc. C-12 便攜式碳監測儀。這種革命性的設備以 1 分鐘的時間分辨率連續測量和報告黑碳“BC”的濃度。

利用 880 nm 近紅外光通過過濾介質的光學衰減原理，含有 BC 的顆粒物質實時沉積在過濾介質上，C-12 具有使過濾器前進 1,000 多個的能力，這意味著該傳感器可以在無人值守的情況下運行兩個多月。

C-12 是一款工業級設備，可為用戶提供一系列實時診斷信息，使他們能夠持續監控其性能。雖然與其他市售碳監測儀相比價格便宜，但可以預期其使用壽命超過十年。

C-12 便攜式碳監測儀是獨立的，無需昂貴、占用空間和電力的環境庇護所。相反，該設備幾乎可以在任何地方在幾分鐘內完成設置。由于其適中的采樣率 (1 LPM)，C-12 在大多數地區可以很容易地通過適中的太陽能電池板進行操作。它標配交流電源適配器。

C-12 的標準配置使用戶能夠以 1 分鐘的時間間隔以優于 70 ng/m 3的靈敏度測量和報告 BC（880 nm 照明）濃度。

配備集成的 CCS+ COMET Cloud 調制解調器，可在定制的網頁儀表板上實時獲取數據。C-12 便攜式碳監測儀對總懸浮顆粒物“TSP”進行采樣，如果需要，用戶可以選擇將 C-12 安裝在可選的三腳架上，以實現快速、靈活的部署。桿式安裝是可選的。

開創性的新型 C-12 具有較低的初始購置成本和較低的持續運營成本。

使用 1 LPM 的標準采樣率，可以使用大多數市售流量校準器（例如用于支持政府空氣質量監測系統的流量校準器）對該裝置進行流量檢查和流量校準。也可以購買可選的流量校準系統來支持操作。C-12 采用與 Met One Instruments, Inc. 型號 BC-1054、型號 BC-1060 和其他市售的基于膠帶的碳測量設備（Aethalometer）相同的跨度校準值 (MACS)。

C-12 便攜式碳監測儀特征

• 顆粒數據無與倫比的價值
• 實時云通信
• 兼容數據記錄器
• 可訪問的價格點
• 經過時間考驗、經久耐用、可靠的技術
• 精確測量

C-12 便攜式碳監測儀應用：

環境監測
圍欄監控
智慧城市
氣候研究

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：
???????
C-12 Portable Carbon Monitor

CARBON MONITORING ON A GRANULAR SCALE HAS NEVER BEEN MORE AFFORDABLE, OPENING UP AN ARRAY OF OPPORTUNITIES THAT WERE PREVIOUSLY ECONOMICALLY OUT OF REACH FOR MANY APPLICATIONS.

Introducing the GROUNDBREAKING Met One Instruments, Inc. C-12 Portable Carbon Monitor. This revolutionary device measures and reports the concentration of black carbon “BC” continuously with a 1-minute time resolution.

Using the principle of optical attenuation of 880 nm near-infrared light through filter media upon which particulate matter containing BC deposits in real-time, the C-12 has the capability of making more than 1,000 filter advances, meaning that this sensor can operate unattended for more than two months.

The C-12 is an industrial-grade device, providing the user with an array of diagnostic information in real-time that will allow them to monitor its performance continuously. Although it is inexpensive compared to other commercially available carbon monitors, one can expect its operating life to be more than ten years.

The C-12 Portable Carbon Monitor is self-contained, eliminating the need for an expensive, space- and power-consuming environmental shelter. Instead, the device sets up in a matter of minutes virtually anywhere. Because of its modest sampling rate (1 LPM), the C-12 can easily be operated off modestly-sized solar panels in most regions. It comes standard with an AC power adapter.

The standard configuration of the C-12 enables the user to measure and report the BC (880 nm illumination) concentration with sensitivity better than 70 ng/m3 at 1-minute time intervals.

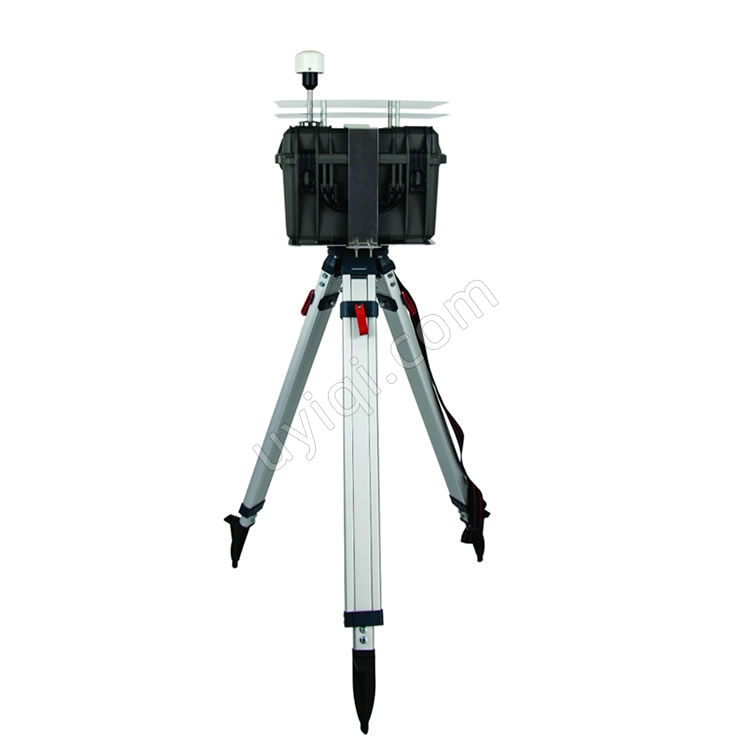

Equipped with an integrated CCS+ COMET Cloud modem, the data is available in real-time on a customized webpage dashboard. The C-12 Portable Carbon Monitor samples total suspended particulate matter “TSP” and, if desired, the user may opt to mount the C-12 onto an optional tripod for rapid, flexible deployment. Pole-mount is optional.

The groundbreaking new C-12 has a low initial acquisition cost and low ongoing operational costs.

With a standard sampling rate of 1 LPM, the unit may be flow-checked and flow-calibrated using most commercially available flow calibrators such as those used to support governmental air quality surveillance systems. An optional flow calibration system may also be purchased to support operation. The C-12 employs the same span calibration value (MACS) used by the Met One Instruments, Inc. Model BC-1054, Model BC-1060, and other commercially available tape-based carbon measurement devices (Aethalometer).

FEATURES
• Unmatched Value for Granular Data
• Real-Time Cloud Communications
• Data Logger Compatible
• Accessible Price Point
• Time Tested, Long-Lasting, Reliable Technology
• Precision Measurements

APPLICATIONS:
Ambient Monitoring
Fenceline Monitoring
Smart Cities
Climate Research

---
