產品名稱：氡氣傳感器自動化系統監視器

品牌：SARAD

產地：德國

型號：Smart Radon Sensor

Smart Radon Sensor智能氡氣傳感器介紹：

SARAD 卓越的檢測器技術將建筑物和工作場所的氡氣監測定義為新水平，Smart Radon Sensor智能氡氣傳感器符合歐盟輻射防護法規的要求。
Smart Radon Sensor智能氡氣傳感器在一個非常小巧且造型優美的外殼中提供了非常高的靈敏度。由于采用了檢測器技術，儀器不會受到任何溫度和濕度變化、外部輻射、機械沖擊和振動的影響。
Smart Radon Sensor智能氡氣傳感器提供用于系統集成的各種接口。RS-485 現場總線接口可以使用 MODBUS RTU（工業標準）或?qū)Ｓ械?SARAD 協議進行操作。模擬輸出可以輕松地將智能氡氣傳感器連接到現有的 PLC。
Smart Radon Sensor智能氡氣傳感器通過報警開關輸出可以輕松實現獨立的通風控制系統。
Smart Radon Sensor智能氡氣傳感器為了便于安裝，所有連接都可通過螺釘端子進行。
如果沒有可用的數據線，可選集成的 ZigBee 無線接口可用于連接到主機系統。
寬范圍的電源輸入接受所有樓宇自動化常用的電壓電源。接通電源后立即開始測量。集成了兩節 AAA 電池，以便在電源中斷的情況下繼續測量。
Smart Radon Sensor智能氡氣傳感器所有測量結果將本地存儲在非易失性循環存儲器中。
溫度和濕度傳感器作為標準集成，而 CO 2和氣壓測量是可選的。
Smart Radon Sensor智能氡氣傳感器帶有工廠校準，可以由任何負責任的認可實驗室進行校準。我們僅使用在我們公司位于德國德累斯頓的工廠生產的高質量和儀器級組件。

Smart Radon Sensor智能氡氣傳感器版本：

標準版
帶 CO 2傳感器
帶壓力傳感器

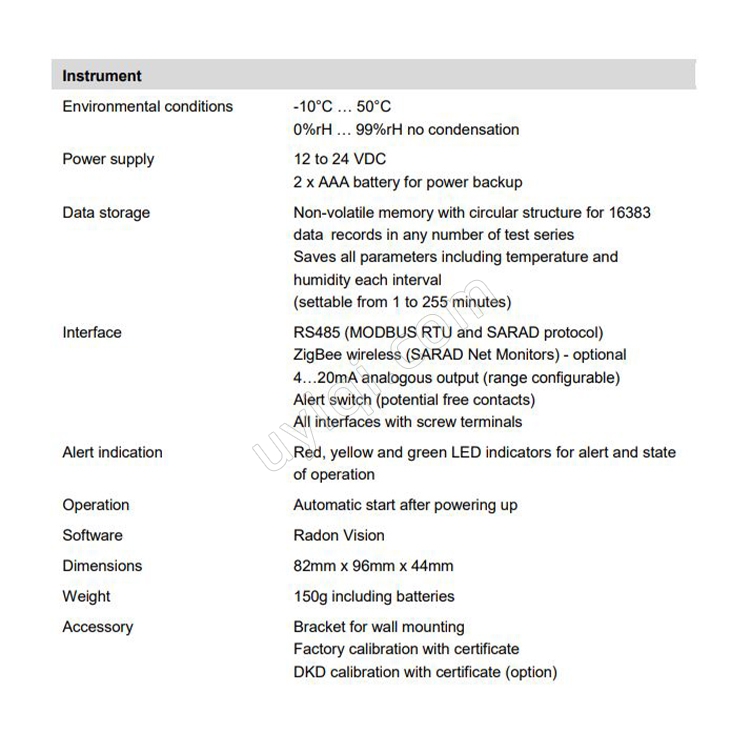

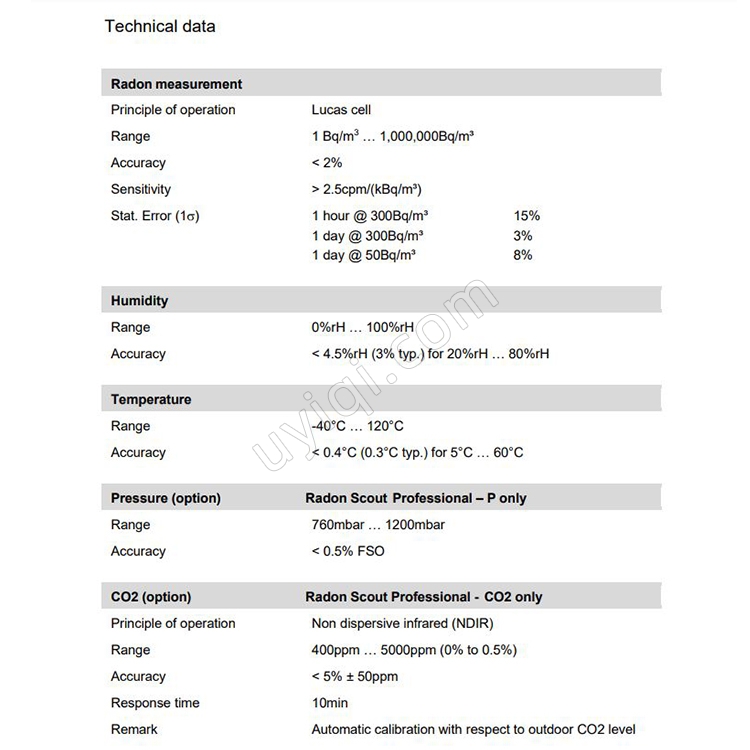

Smart Radon Sensor智能氡氣傳感器參數：

中文內容來自機器翻譯，內容僅供參考，實際內容可參考原廠介紹或以合同為準。
英文原文：

Smart Radon Sensor :: Monitor for building automatisation systems

SARAD’s outstanding detector technology defines a new level of radon monitoring in buildings and at workplaces as requested by the recently introduced EU radiation protection regulations.

The Smart Radon Sensor offers a very high sensitivity in a very small and shapely housing. Due to the detector technology, the instrument will not be affected by any variations of temperature and humidity, external radiation, mechanical shocks and vibrations.

Various interfaces for system integration are available. The RS-485 fieldbus interface can be operated either with the MODBUS RTU (industrial standard) or the proprietary SARAD protocol. The analogous output makes it easy to connect the Smart Radon Sensor to existing PLC’s.

A stand-alone ventilation control system can be easily realized by the alert switch output.

For easy installation, all connections are available through a screw terminal.

If no data line is available, the optionally integrated ZigBee wireless interface can be used for connection to a host system.

The wide range power input accepts all in building automation commonly used voltage supplies. The measurement starts as soon as the power is connected. Two AAA batteries are integrated to continue the measurement in case of power interruptions.

All measurement results will be stored locally in a non-volatile circular memory.

Sensors for temperature and humidity are integrated as standard whilst CO2 and barometric pressure measurement are optional.

The Smart Radon Sensor comes with factory calibration and can be calibrated by any responsible accredited laboratory. We use only high quality and instrument grade components for this product which is manufactured in our company’s site in Dresden/Germany.

The instrument comes with a DAkkS compliant calibration certificate. The calibration process fulfills the requirements of the DIN EN ISO/IEC 17025:2018.

---
